SKU:58726-000
Tamiya XV-02RS Pro Chassis
Tamiya XV-02RS Pro Chassis
Regular price
$569.00
Regular price
Sale price
$569.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
On-Road Oriented Rally Chassis!

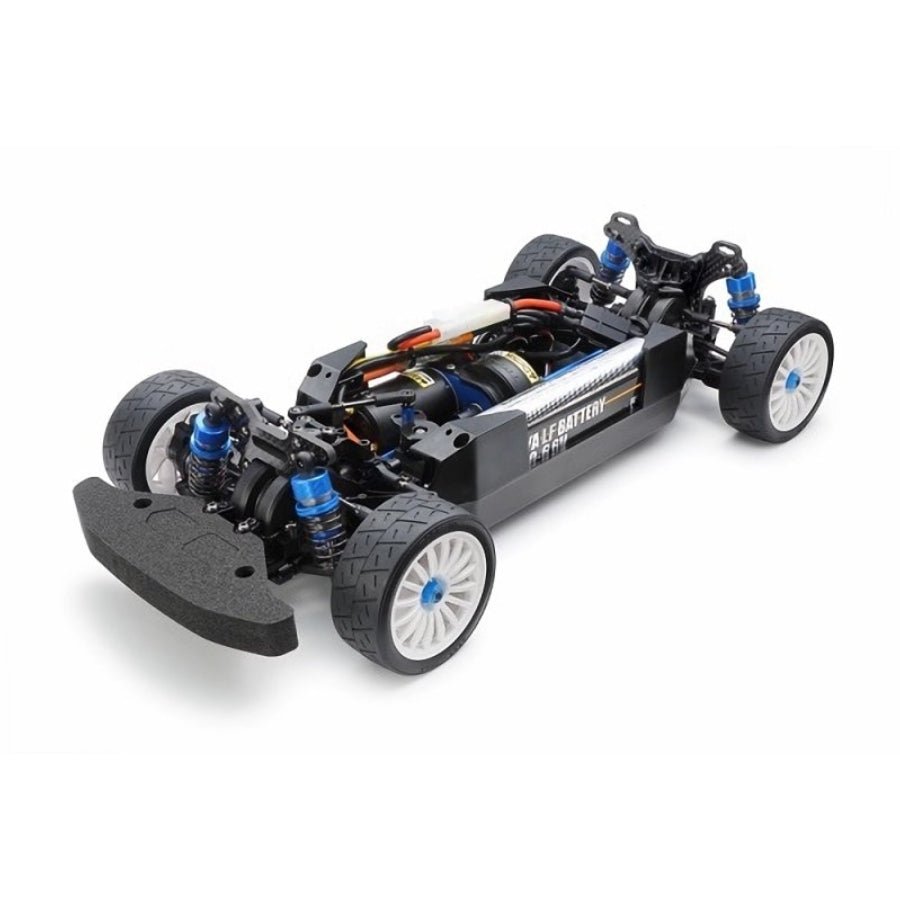

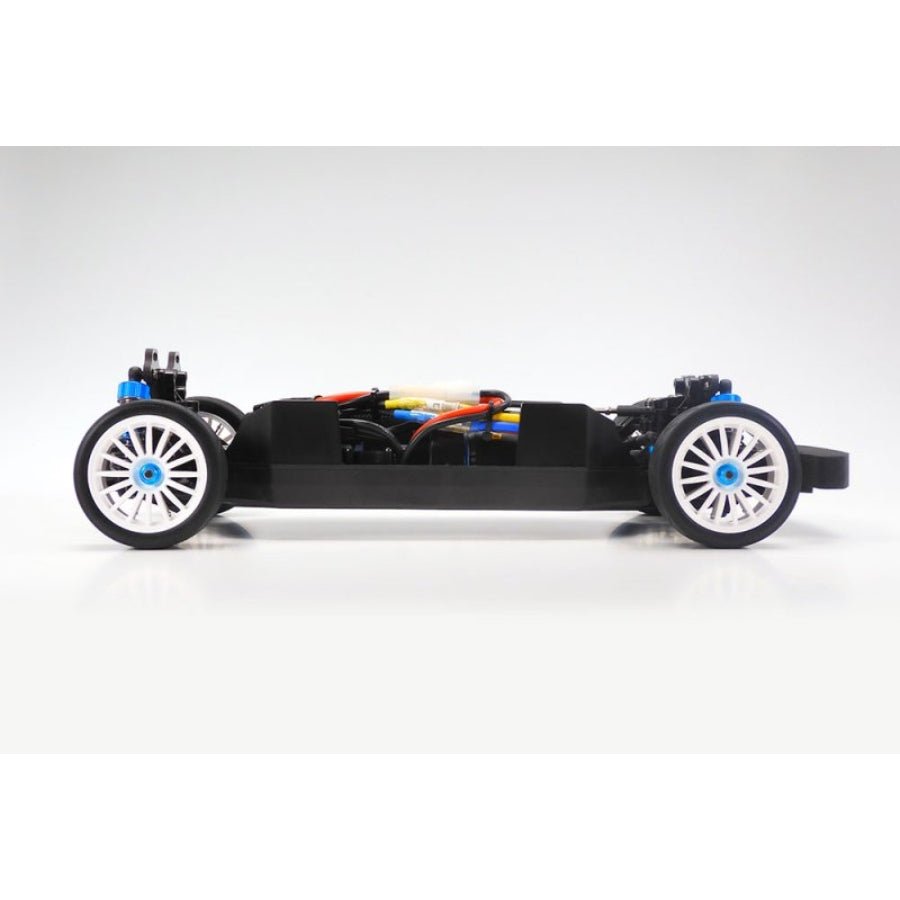

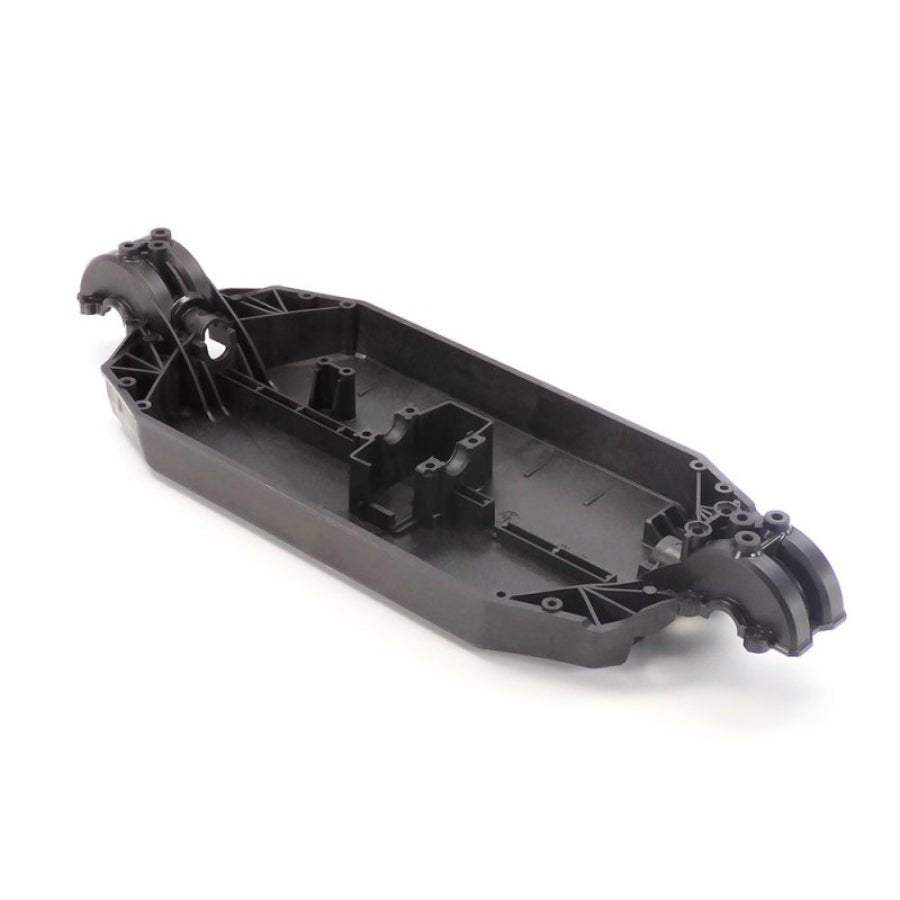

This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.
| Specifications ★Length: 368mm, width: 180mm ★Wheelbase: 257mm ★Carbon fiber-reinforced plastic bathtub frame ★Front midship motor, shaft-driven 4WD ★Front & rear oil-filled gear differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Aluminum cylinder oil dampers (blue caps, touring car size) ★Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions) ★Electronic speed controller (ESC) is sold separately. |
★Body ★Type 540 motor ★2-channel R/C system w/ESC & low-profile servo ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
