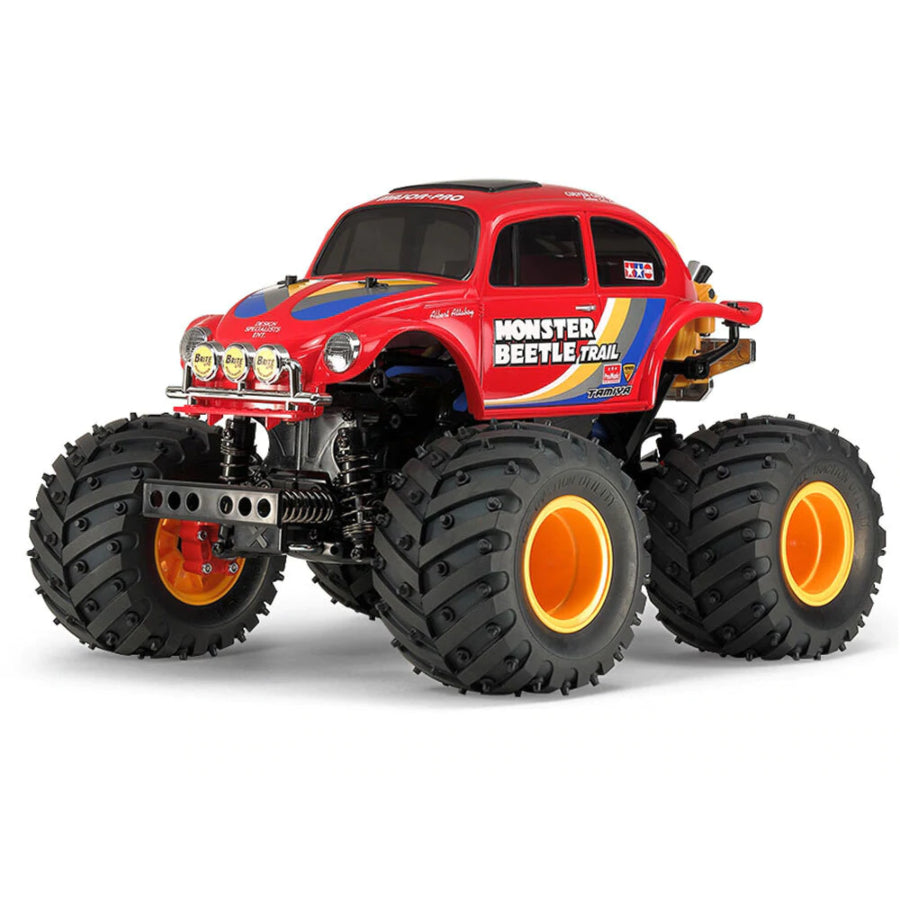

Tamiya 1/14 Monster Beetle Trail 4WD Off Road Car (GF-01TR Chassis)

GF-01TR Monster Beetle Trail - 76-T58672A

Trail Beetle
This R/C model assembly kit creates a vehicle which offers an excellent off-road drive. Molded in detailed ABS plastic, its racy body is inspired by customized Volkswagen Beetles, and features exaggerated fenders, a simplified rear end, triple auxiliary lights and more. Metal-plated parts recreate headlights, auxiliary lights and the rear depiction of the engine. The GF-01TR chassis provides a dynamic off-road drive

GF-01TR: Awesome Traction
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilizes friction dampers, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip. The chassis utilizes a 'square' setup with similar tread and wheelbase lengths

Features:

• Depictions of engine and muffler are also metal-plated parts. The body also features a sporty roll bar.
• Use the included putty in the gear differentials to help endow this model with superb traction.
• All wheels have hub reduction units, which slow down drive shaft output for greater torque.
• The chassis has higher ground clearance that further boosts its capabilities on tough terrain

Specifications:

• Length: 333mm, Width: 270mm, Height: 215mm
• Wheelbase: 174mm　
• Tread: 210mm (Front & Rear)
• Tire Width/Diameter: 68/115mm (Front & Rear)
• Monocoque Frame
• 3-Bevel Differential Gears
• 2-Piece Steering Tie-Rod
• 4-Wheel Independent Double Wishbone Suspension
• Gear Ratio = 37.35:1 (using kit standard 18T pinion gear)
• Type 540 Motor
• Electronic Speed Controller (ESC) is sold separately

Separately Required Items:

• 2-channel R/C system
• Servo
• ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger
