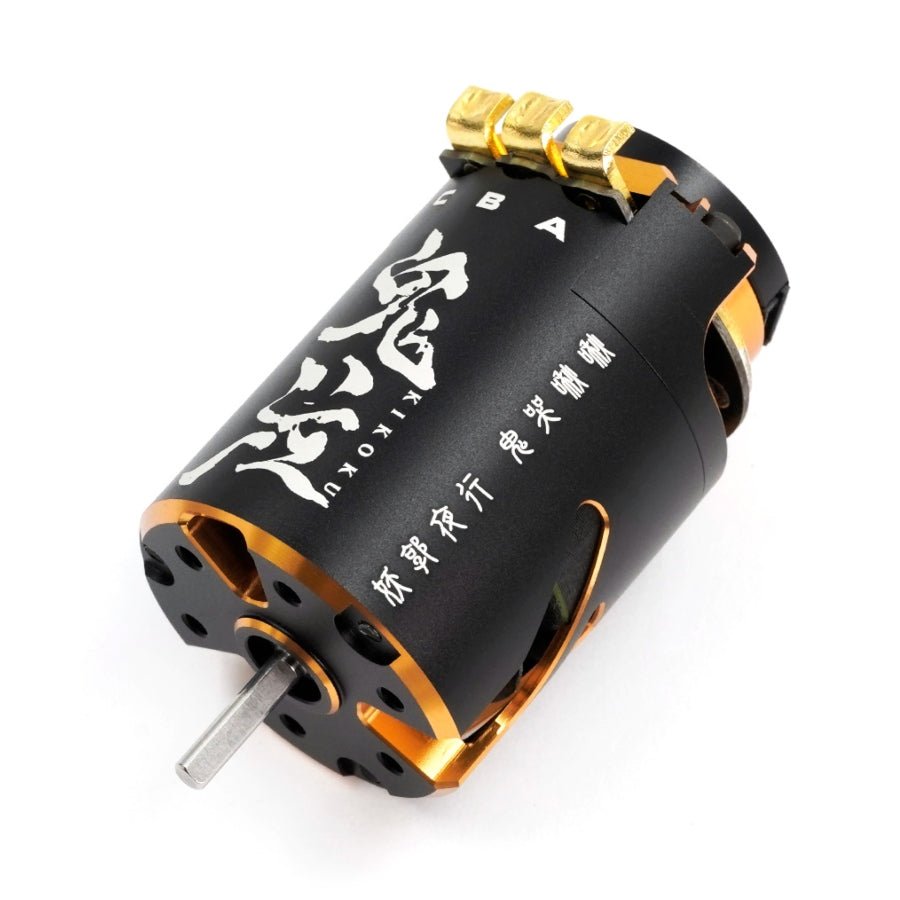

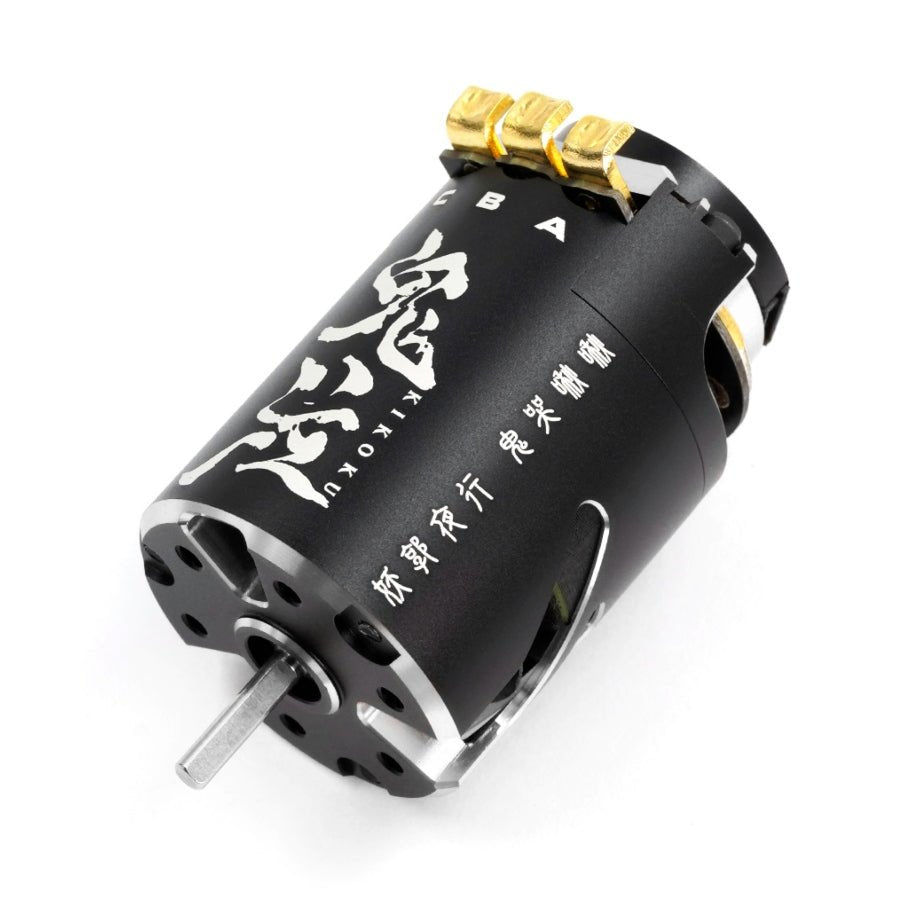

Onisiki KIKOKU 8.5T Drift Performance Sensored Brushless Motor

Description:

New generation of Onisiki drift motors with a newly overhauled design. Featuring a lightweight can design which also aids in cooling with more cutouts. Rotor with fanblades aids in drawing cool air into the motor coils.

Feature:

• For: 1/10 Drift

• Material: Aluminum

• Color: Black/Silver

• Turns:8.5T

• KV:5150

• Size:540

• Lipo:2-3S

• No-load Current(A):3.6A

• Max Amps:80A

• Poles:2

• Resistance (Ω):0.0102

• Shaft Diameter(inches):Φ3.175

• Mounting Hole Depth:<5mm

• Extensive Shaft Length:14mm

• Efficiency:93%

• Operational temperature:<150

• Weight(g):172

• Size:35.8x54.8mm

Specification:

• 0.2mm Silicon Steel Stator Laminations

• N38UH Neodym Magnet as Rotor Material

• Japan Heat Resistant Bearings by NMB

• Special Internal Rotor With Fan

• Precise Hall Daul Sensors

• High Purity Copper Windings

• Timing 30-60 Degrees (Adjustable )

• 3.5mm Brushless Motor Connectors 1 Set - ONI6413

Include:

• KIKOKU 8.5T Brushless Sensored Motor (1 pc)

• Sensor Cable (1 pc)

• 3.5mm Brushless Motor Connectors 1 Set
