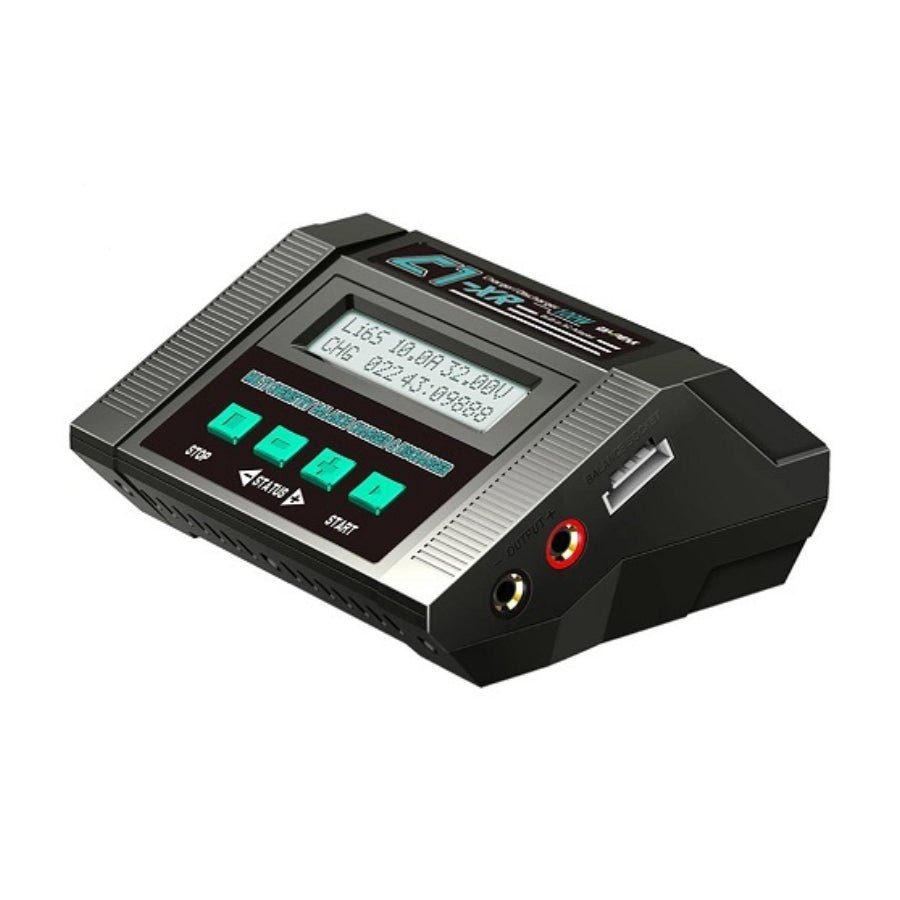

Ev-Peak 100W AC/DC Multi Function Balance Charger

100W AC/DC Multi-function Balance Charger

Compact Intelligent Charger with 10A Charge rate

This compact, intelligent, multi-function battery pack balance RC Battery charger will charge Li-ion, Li-Po, LiFe, LiHv, NiCad, NiMh and Pb type battery packs between 1 - 15 cells and  2 to 24V range. With a 10A charge rate and intelligent charging algorythm design, it will charge your battery pack safer, quicker and more efficiently. Integrates a backlit LCD display for ease of use operation and navigation through all the charging and discharging options.

Dual power options; it comes with a figure 8 IEC C7 cable for 240V AC mains connection as well as a alligator clips for 12V Direct Battery connection.

Specifications:

Model: Ev Peak C1-XR

Features

• Create a safe charging condition and reduce the danger caused by negligence or setting error of user.

• Synchronous buck & boost converter technology makes conversion efficiency up to 90%.

• Accept all typs of RC/Drone batteries: LiPo/LiLo/LiFe/NiMH/NiCd/Pb.

• Perform 1-5cycles of C>D or D>C continually for NiMH/NiCd refreshing.

• Various of charging mode to meet different demands.

• Easy to operate.

Specifications

• Power supply: 240 V AC / 11 -18 V DC

• Charging power: 2x 100 Watt, 2x max. 10 A

• Discharging power: 2x 12 Watt, 2x max. 5 A

• Maximum number of cells: 1-15 NiCd/NiMH cells, 1-6 LiPo/LiIon/LiFe cells, lead-acid 1-10 cells (2V - 20V)

• Balancing Power: max. 350W

• Size: 170 x 240 x 54 mm

• Weight: 1.25 kg

Includes

• 1x C1-XR

• 1x Charging Cable

• 1x Balancing Adapter Board XH

• 1x DC Input Cable

• 1x AC Input Cable
